MUSE M15 EX2 TA2024 T-Amp Mini Stereo Amplifier 15WX

แอมป์ขนาดเล็กคุณภาพคุ้มราคา เป็น Class T Amplifier ใช้ชิพ Tripath TA2024 กำลังขับ 2x15W

Specification

 - Class T Integrated Amplfier
 - 1 RCA Inputs
 - High Quality Components
 - Bridged Output Amplifier
 - Specifications of the IC :
 - T-Amp IC Tripath TA2024
 - Output Power 2 x 15W @ 4ohm, 2 x 10W @ 8ohm
 - Signal-to-Noise Ratio (SNR) 98dB
 - Dynamic Range 98dB
 - IHF-IM Distortion 0.1% @ 1W, 4ohm
 - THD Distortion
    0.03% @ 9W, 4ohm
    0.1% @ 10W 4ohm
    0.1% @ 6W 8ohm
    10% @ 23W 4ohm
    10% @ 13W 8ohm
    Power Efficiency 81% @ 15W, 4ohm, 88% @ 10W, 8ohm
    Input Sensitivity 200mV
    Power socket (5.5mm/2.1mm) x 1

Output
- Speaker OUT (Left) x 1 pair (+ / -)
- Speaker OUT (Right) x 1 pair (+ / -)
- Power Indicator (Blue LED) x 4

Description

 - 6mm aluminum contain a power adapter
 - Dimensions:(L)150mm x (W)90mm x (H)40mm;Weight:450g

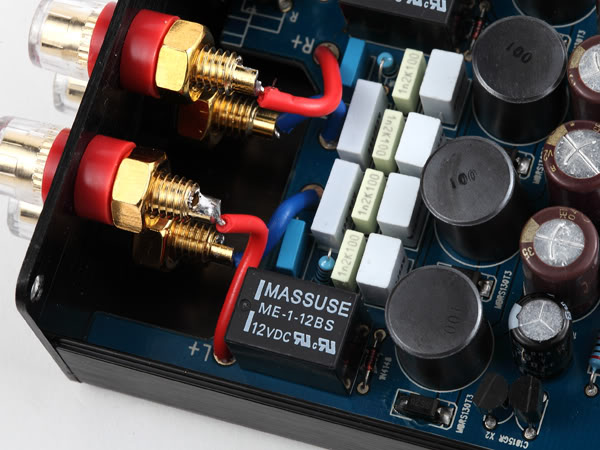

1.Japan made TOKO Fixed Inductors For Digital Audio Amplifier
2.Increase the speaker protection circuit
3.To use better quality components
4.Special custom power supply
5.The newly designed shell and panels
6.Original Japanese ALPS potentiometer
