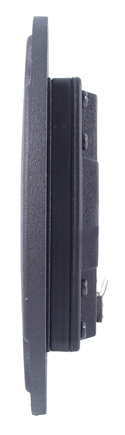

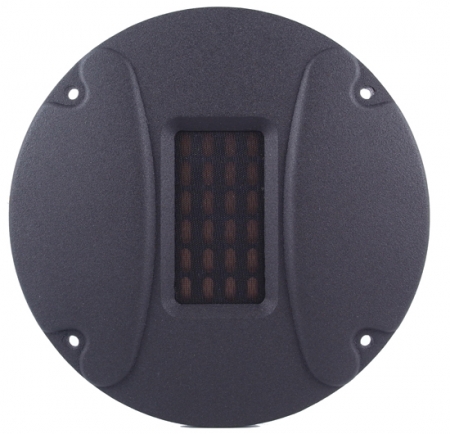

Hi-Vi RT1.3WE Isodynamic Tweeter

ลำโพง Hi-Vi RT1.3WE Isodynamic Tweeter

RT1.3WE
Round flange version of the RT1.3.

Overview:
High power handling and wide range response frequency band. No impedance resonance. Driving force distributes in vibration surface with precision vibration chip which combines of heat-resistant Kapton Membrane material and heat-resistant conducting electrical membrane, covering about 90% of the chip in 5-way Neodymium magnets. Since RT1.3WE has exceptional ability to reveal the dynamics of instruments and sonic resolution, it is recommended to match it with drivers having similar properties in order to maximize the overall integrity of a speaker system. The vibrating element of the RT1.3WE is almost weightless to that of a dome tweeter. As a result it provides an immediate and precise response to any transients in the original signal. RT1.3WE has speedy transient behavior and high sensitivity. Linear phase response synchronizing time delay characteristic improves positioning precision of reproduction.

Highly efficient heat-dispel structure reduces the temperature of the vibration chip in working. This considerably decreases the design complications.

General Data:
Nominal Power Handling (Pnom)(W)  : 10
Max Power Handling (Pmax)(W)  :  30
Sensitivity (2.83v/1m)(dB)  :  92
Weight (M)(Kg)  :  0.2
Nominal Impedance (Z)(Ω)  :  6
DC (Re)(Ω)  :  5.4
Magnet  :  Neodymium
