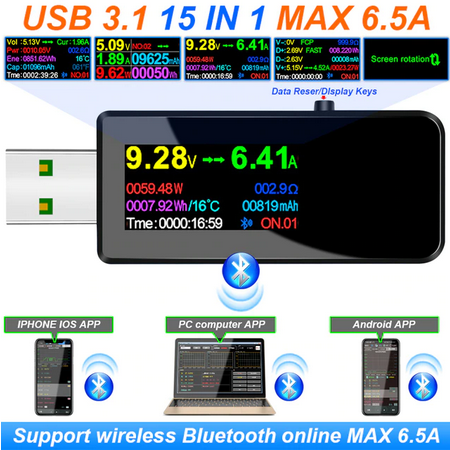

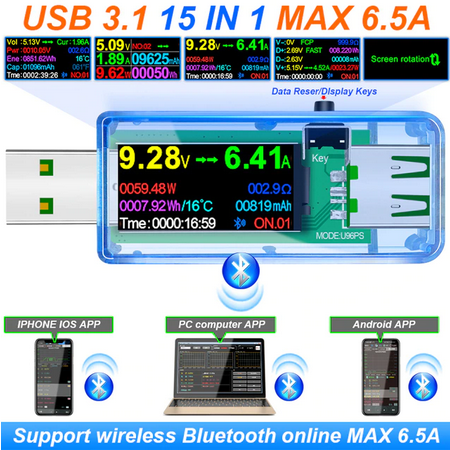

เครื่องวัดไฟ USB เชื่อมต่อบลูทูธ รุ่น U96CB 15 in 1 USB 3.1 Tester DC Power Meter Digital Voltmeter Voltage Doctor Detector

Software download address:

1.http://www.mediafire.com/folder/31bc15uhq8odb/E-meter
2.supports Android phones and IOS phones

Production Description

Measurement Ranges (and resolution accuracy):
Voltage: 3.60 - 32.5 V (0.01 V)
Current: 0.00 - 5.10 A (0.01 A)
Capacity accumulation: 0 – 99999 mAh (0.001 Ah)
Power accumulation: 0 – 9999.99 Wh (0.01 Wh)
Power calculation: 0.00 - 160.00 W (0.01 W)
Impedance: 0.0 - 6000.0 Ω (0.1 Ω)
Temperature: 0 - 100 °C (1 °C)
Timing time: 999H59M59 S (1 S)
USB D+ voltage: 0 - 3.30 V (0.01 V)
USB D- voltage: 0 - 3.30 V (0.01 V)

Product Details:

Input Interface:  USB
Output interface:  USB
Timed charge reminder settings: 24-hour countdown
Full charge threshold parameters: < 2 W / 0.5 hours
Refresh time: > 500mS / time
Measurement rate: about 0.5 time / S
Alarm mode: siren sound
Display type: IPS Color Screen
Product dimensions: 65 x 24 x 14 mm
Current consumption: < 0.02 A
Operating temperature: -10 to +60 °C
Working humidity: 10 to 80 (no doubt)
Work oppression: 80 - 106 Kpa
