Proel S12A Subwoofer Active ลำโพงซับวูฟเฟอร์ 12 นิ้ว
มีแอมป์ในตัว

PROEL introduces the S Series, a new range of compact and powerful sub-woofers designed to complement PROEL full-range speakers. The variety of size, power and SPL offered by the four active S models provides, at an unbeatable price point, the perfect low extension solution for any speaker model available in the PROEL range.

All the S models feature high-excursion woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub-woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.

The new CLASS D amplifier modules with SMPS (Switch Mode Power Supply) can generate a massive amount of continuous power in a compact, lightweight and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch.

The cabinets are built with 15/18mm plywood and finished with extra-durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).


Active Hybrid Bandpass Subwoofer

    With integrated ClassD digital power amplifier
    Equipped with: 12" Woofer
    Power: 600 W
    Frequency range: 43 - 160 Hz
    Maximum level: 127 dB
    Switchable high-cut: 100 Hz - 160 Hz
    Switchable phase: 180°

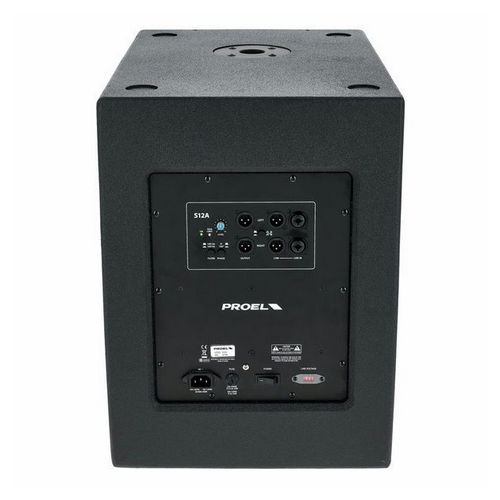

    Connector panel with 2x XLR / jack combo input
    2x XLR Link out and 2x XLR Line out
    36 mm stand flange mount
    2 Handles
    Dimensions: 360 x 500 x 520 mm
    Weight: 19 kg
