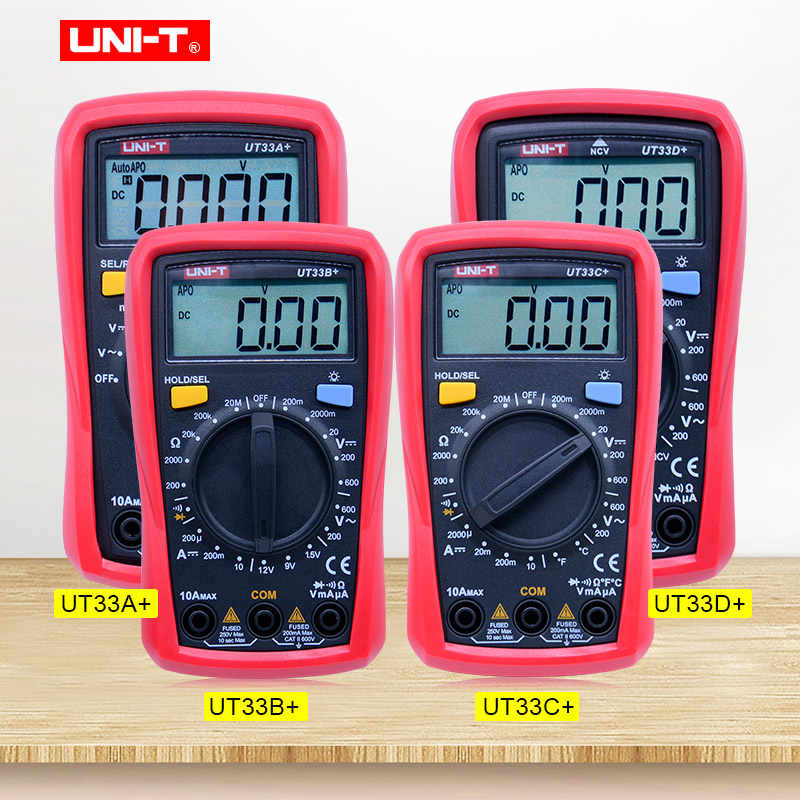

ปาล์มมัลติมิเตอร์ดิจิตอล UNI-T สี่รุ่น UT33A+/UT33B+/UT33C+/UT33D+ Palm Size Digital Multimeters Professional Electrical Handheld Ammeter Multitester With Backlight Data Hold

มัลติมิเตอร์ดิจิตอล UNI-T สี่รุ่น UT33A+/UT33B+/UT33C+/UT33D+ Palm Size Digital Multimeters Professional Electrical Handheld Ammeter Multitester With Backlight Data Hold




Description

UT33+Series: The new generation UT33+ series redefines the performance standards for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. The UT33+ series safety standards have also been enhanced to ensure that users can work safely in CAT ll 600V environment.

Featrues: 1. Clear LCD display on 1999 counts 2. Equipped with comfortable protective cover, test lead hanging slot 3. 2m drop proof with precision protection 4. Auto power off 5. Auto backlight off 6. They can test continuity buzzer,diode test,test probe holder. 7. Ergonomically designed rotary switch 8.Auto range for UT33A+, UT33B+/C+/D+are manual range.

UT33A+

Specifications Range

DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%＋2)
AC voltage (V 200mV/2V/20V/200V/600V ±(0.7%+3)
DC current (A) 200μA/2mA/20mA/200mA/2A/10A ±(1%+2)
AC current (A) 200μA/2mA/20mA/200mA/2A/10A ±(1.2%+3)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(0.8%+2) Capacitance(F) 2nF/20nF/200nF/2μF/20μF/200μF/2mF ±(4%+8)



UT33B+

Specifications Range

DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%＋2)
AC voltage (V 200V/600V ±(1.2%+3)
DC current (A) 200μA/2mA/20mA/200mA/2A/10A ±(1%+2)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+2)



UT33C+

Specifications Range

DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%＋2)
AC voltage (V 200V/600V ±(1.2%+3)
DC current (A) 200μA/2mA/20mA/200mA/2A/10A ±(1%+2)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+2)
Temperature(℃)-40℃~1000℃ ±(1%+4)
Temperature(℉)-40℉~1832℉ ±(1.5%+5)



UT33D+

Specifications Range

DC voltage (V) 200mV/2V/20V/200V/600V ±(0.5%＋2)
AC voltage (V 200V/600V ±(1.2%+3)
DC current (A) 200μA/2mA/20mA/200mA/2A/10A ±(1%+2)
Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(0.8%+2)

Features	UT33A+	UT33B+	UT33C+	UT33D+
Display count	2000	2000	2000	2000
Auto power off/Auto backlight off	√	√	√	√
Diode test/Continuity buzzer	√	√	√	√
2m drop test/ Test probe holder	√	√	√	√
Range selection	Auto	Manual	Manual	Manual
Battery test		(1.5V/9V/12V)
NCV				√
