Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160-8 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160-8 as a small subwoofer! The excellent low frequency performance will amaze you.



A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.



OPTIMUM CABINET SIZE *

Sealed Volume 0.14 ft.³
Sealed F3 89 Hz
Vented Volume 0.34 ft.³
Vented F3 54 Hz
* Enclosure volume/F3s based on BassBox "optimum" calculations

PRODUCT SPECIFICATIONS
Power Handling (RMS) 50 Watts
Power Handling (max) 100 Watts
Impedance 8 ohms
Frequency Response 30 to 4,000 Hz
Sensitivity 88 dB 1W/1m
Voice Coil Diameter 1.375"
Magnet Weight 15 oz.

THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) 34.3 Hz
DC Resistance (Re) 6.7 ohms
Voice Coil Inductance (Le) 2.34 mH
Mechanical Q (Qms) 3.47
Electromagnetic Q (Qes) 0.36
Total Q (Qts) 0.33
Compliance Equivalent Volume (Vas) 0.87 ft.³
Mechanical Compliance of Suspension (Cms) 0.96 mm/N
BL Product (BL) 9.47 Tm
Diaphragm Mass Inc. Airload (Mms) 22.42g
Maximum Linear Excursion (Xmax) 3.15 mm
Surface Area of Cone (Sd) 134.8 cm²

MATERIALS OF CONSTRUCTION
Cone Material Treated Paper
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Basket / Frame Material Steel
Magnet Material Ferrite

MOUNTING INFORMATION
Overall Outside Diameter 6.5"
Baffle Cutout Diameter 5.69"
Depth 3.24"
Bolt Circle Diameter 6.16"
# Mounting Holes 4

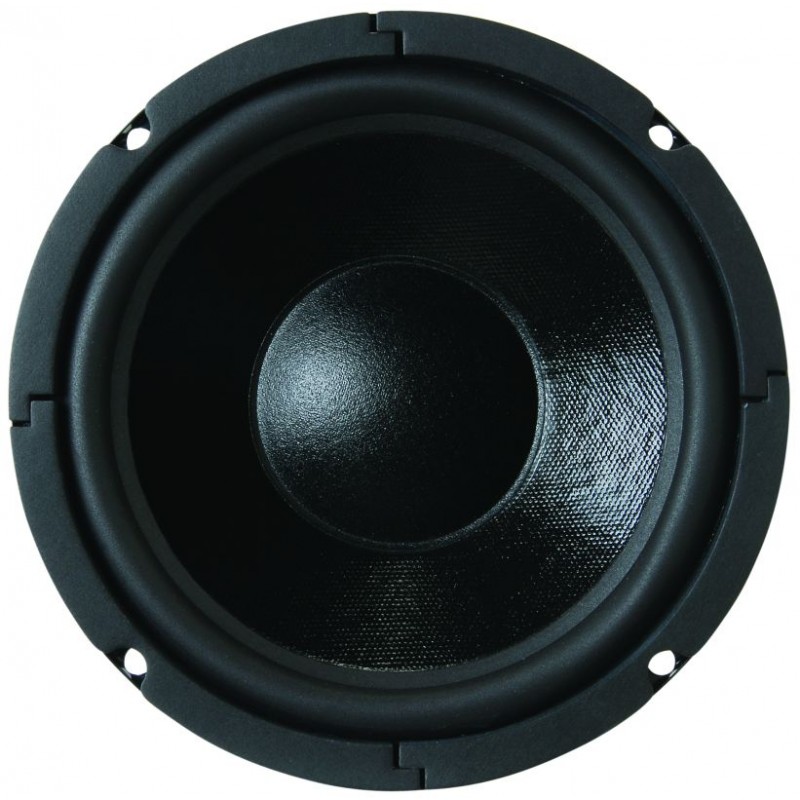

Dayton Audio DC160-8 6-1/2" Classic Woofer
Brand Dayton Audio
Model DC160-8
Part Number 295-305
UPC 844632000232
Product Category Woofers
