หมวดหมู่ | LD Systems |
ราคา | 39,990.00 บาท |
น้ำหนัก | 24,000 กรัม |
ยี่ห้อ | LD Systems |
รุ่น | MAUI 11 G2 |
สี | Black |
สถานะสินค้า | พร้อมส่ง |
ลงสินค้า | 12 ธ.ค. 2562 |
อัพเดทล่าสุด | 1 ก.พ. 2567 |
จำนวน | ชิ้น |
A complete sound system that you can carry together with your instrument. Introducing the MAUI 11 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go!
Setting up the complete system, which doubles as a PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 11 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed after years of experience in the design of the column systems as a user-friendly solution for small to medium-sized gigs and fixed installations.

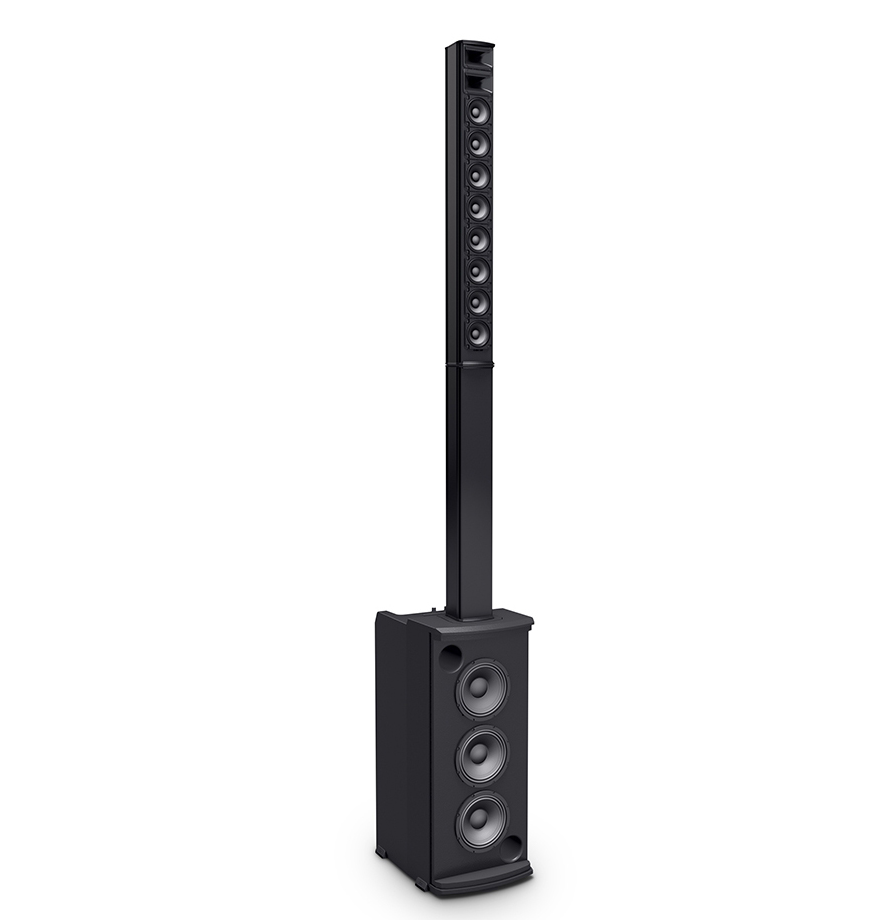

The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier boasting 1,000 watts of peak power and producing a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides top-class performance each time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way-crossover with run time correction.
The design of the MAUI 11 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front. With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system.
Whether you are a singer-songwriter, solo entertainer or DJ, you will be thrilled with the extraordinary sound and portability of the MAUI 11 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 11 G2 is a well thought out overall solution, down to the last details.
Features :
Type | Active |
Colour | Black |
Max. SPL (peak) | 124 dB |
Frequency response | 50 - 20000 Hz |
Dispersion (H x V) | 120° x 20 ° |
Overall height | 2030 mm |
Weight | 24,9 kg |
Low/mid driver dimensions | 3 x 6.5 " |
Woofer size | 3 x 165.1 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
Woofer voice coil | 38.1mm |
Cabinet construction | Vented 15mm plywood |
Cabinet surface | Texture paint |
Subwoofer dimensions | 285mm wide x 650mm height |
Subwoofer weight | 17.8kg |
Midrange size | 8 x 76.2mm |
Midrange magnet | Ferrite |
Midrange brand | Custom-made |
Midrange voice coil | 25.4mm |
Horn | Waveguide |
Tweeter size | 25.4mm |
Tweeter magnet | Neodymium |
Tweeter brand | Custom-made |
Tweeter voice coil | 25.4mm |
Loudspeaker inputs | 1 |
Speaker input connections | Custom-made multipin |
Mid/Hi system cabinet material | Aluminium |
Mid/Hi system cabinet surface | HD coating |
Mid/Hi system width | 96mm |
Mid/Hi system height | 620 / 730mm |
Mid/Hi system depth | 104mm |
Mid/Hi system weight | 5.5 / 2.5kg |
Amplifier Class | D |
Amplifier Output System (RMS) | 500w |
Amplifier Output System (Peak) | 1000w |
Protection circuits | DC protection , Multiband limiter , short circuit , thermal overload |
Cooling | Convection |
Operating Temperature | -40 °C |
Humidity Range | 10% to 80% |
Controls | Bluetooth switch , Hi-Z Level , Line Level , Main Level , Mono/stereo switch , MP3/Bluetooth Level , Power , sub level |
Indicators | limit , mono , on , protect (protection circuit engaged) , Setup , signal , stereo |
Power connector | IEC power cable (included) |
Operating voltage | 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) |
Power consumption | Off / On / Max. 0/11/600 W |
Line inputs | 2 x stereo |
Line input connectors | RCA , XLR/6.3 mm jack |
Line outputs | 1 x direct out |
Line output connectors | XLR |
Mic input | 1 x XLR/6.3 mm jack |
MP3 input | 1 x 3.5 mm jack |
Hi-Z input | 1 x 6.3 mm Jack |
Loudspeaker output | 1 |
Speaker output connections | Custom-made multipin |
Bit depth | AD/DA converter 24 bit |
Internal sampling frequency | 48 kHz |
Signal/noise ratio | 100 dB |
