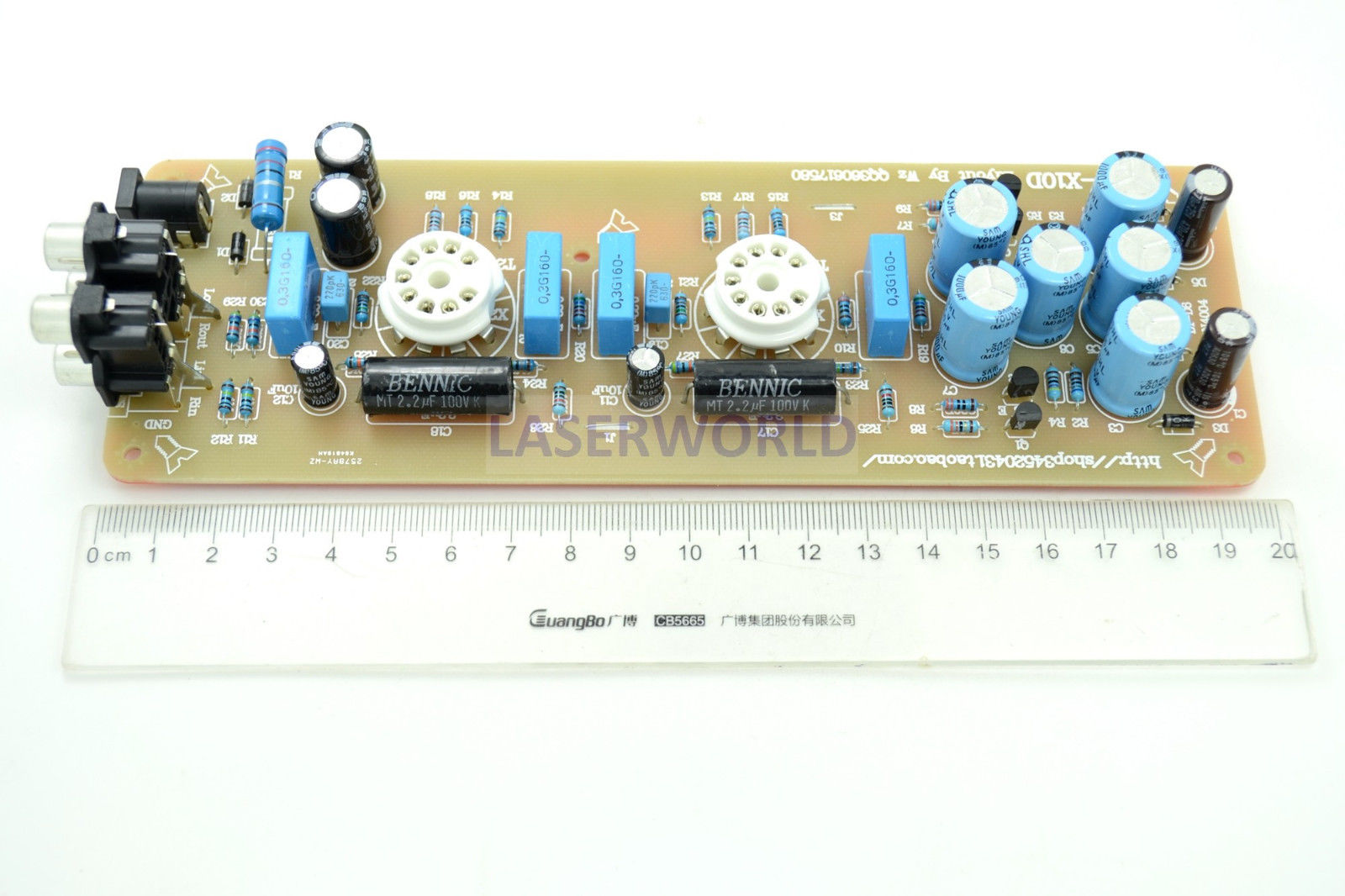

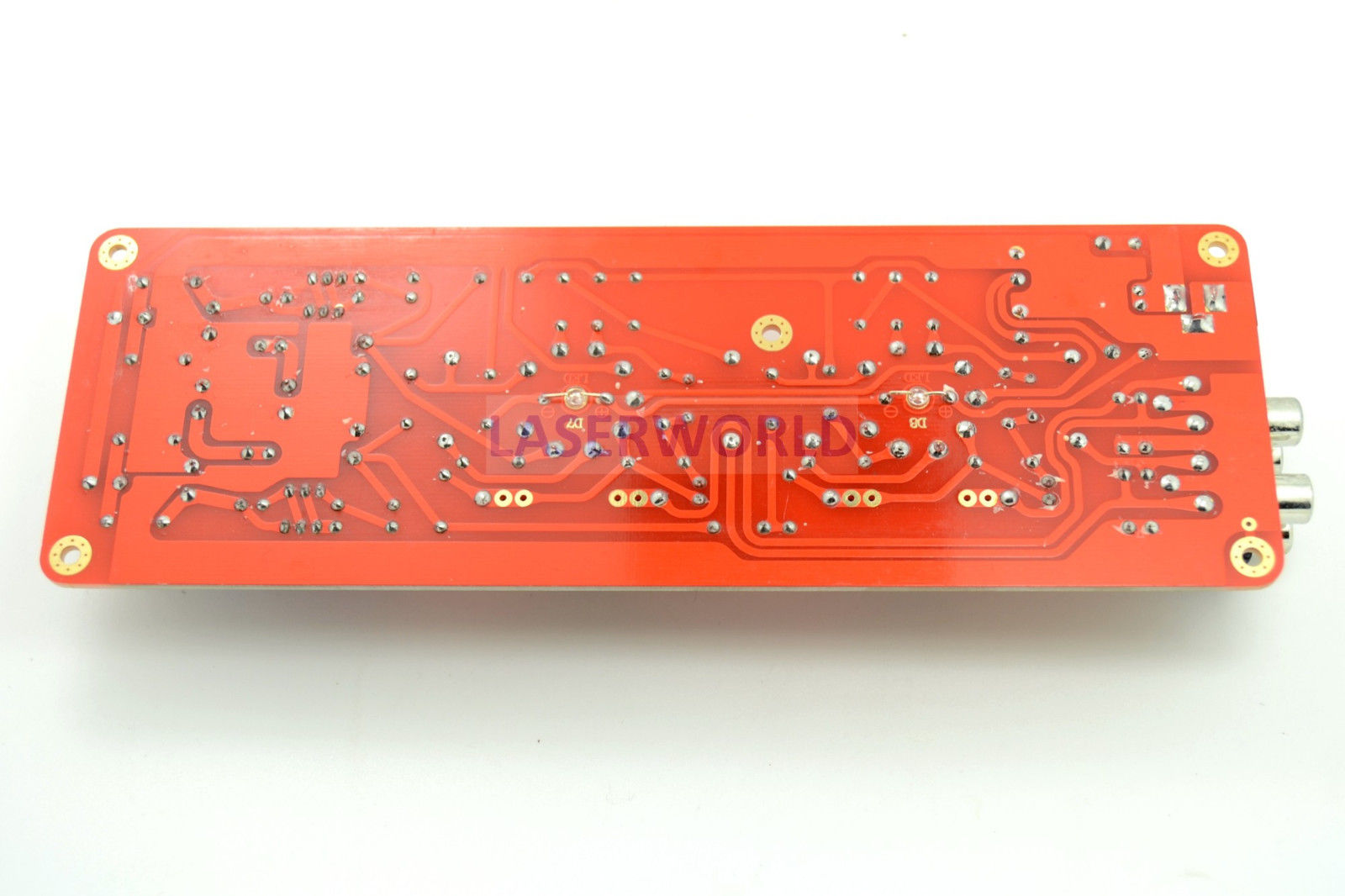

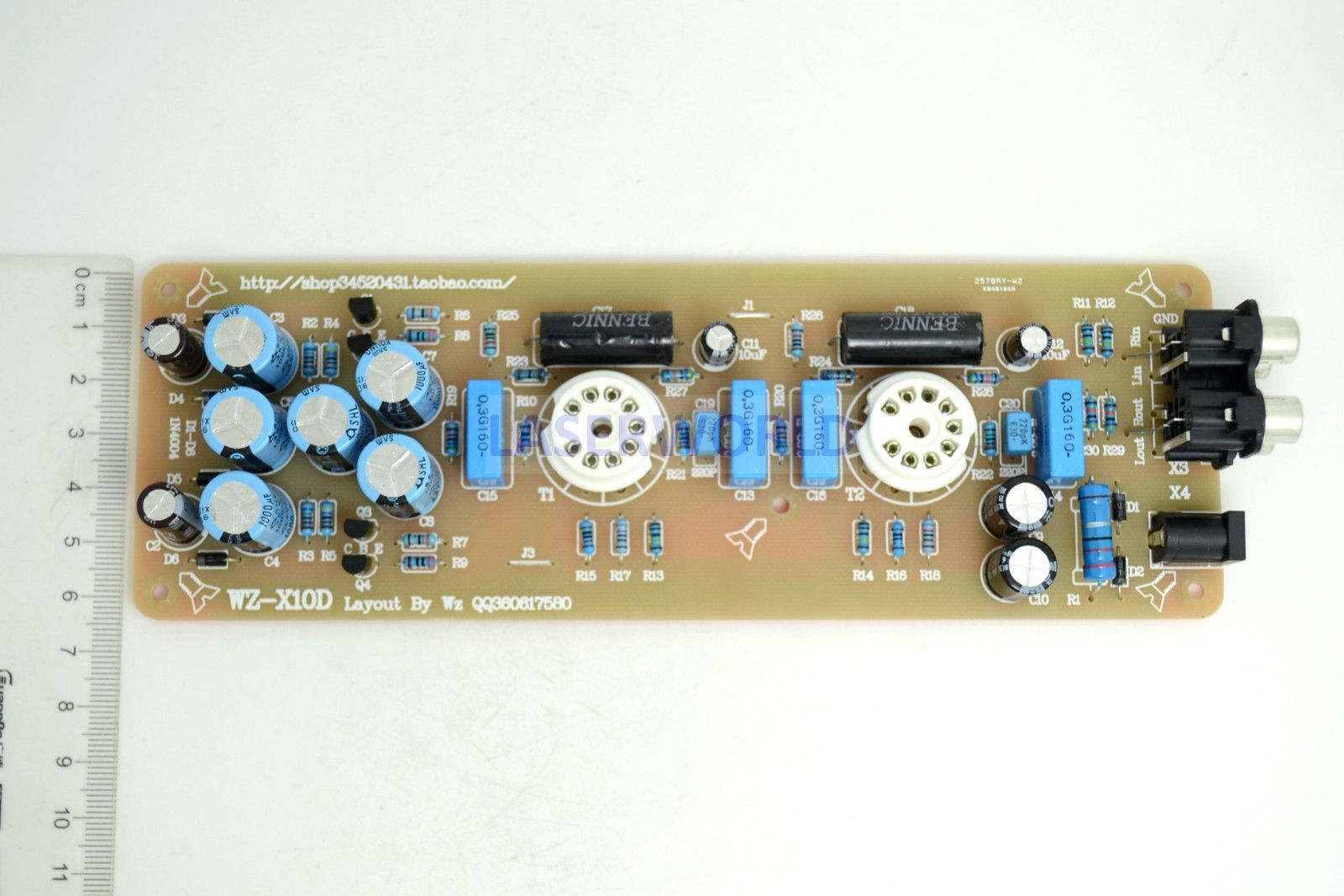

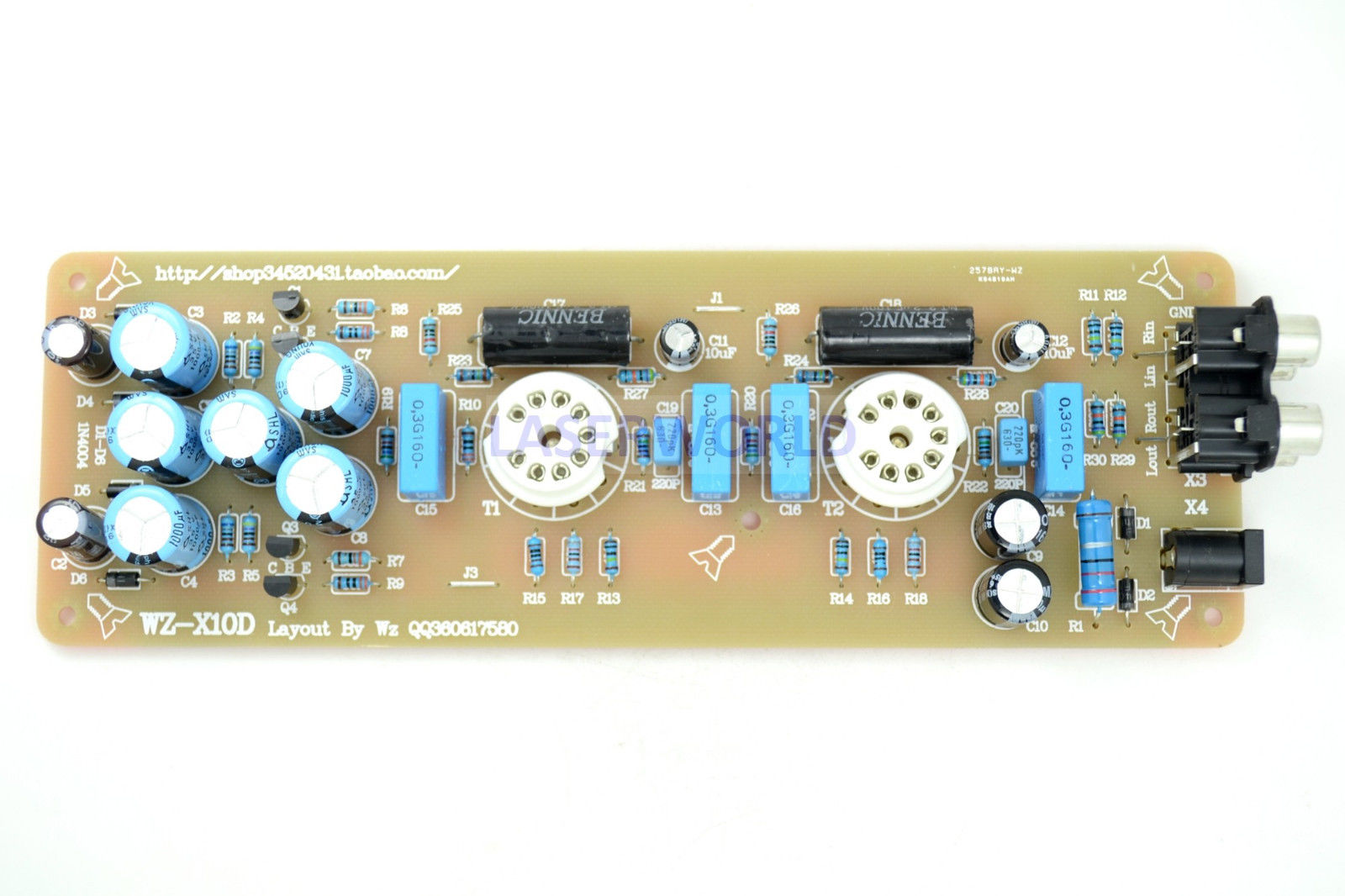

X-10D Musical Fidelity No Tube Buffer Pre-amplifier Board

X-10D Musical Fidelity No Tube Buffer Pre-amplifier Board

บอร์ดปรีหลอด X-10D Musical Fidelity No Tube Buffer Pre-amplifier Board

Specification:

- PCB size:199x66mm

- Installation opening pitch: 187.96x55.88mm

- Input voltage:recommned AC12V/500mA

- Basic parameters:

- Distortion : 0.008% (10Hz ~ 100KHz),

- Frequency sound: 10Hz~100KHz (±0.2db),

- Input/output signal 1:1

NOTE:

1.  ONLY FOR PROFESSIONALS

2. It can work with 6N11/6922/6DJ8/E88CC/ECC88

3. No transformer included, buyers shall install a transformer by themselves. the voltage is AC12V/500mA 30~50W( only AC can work, DC cannot)

4.Please use a separate winding,don't share with others.

Package:
1x buffer pre-amplifier board
