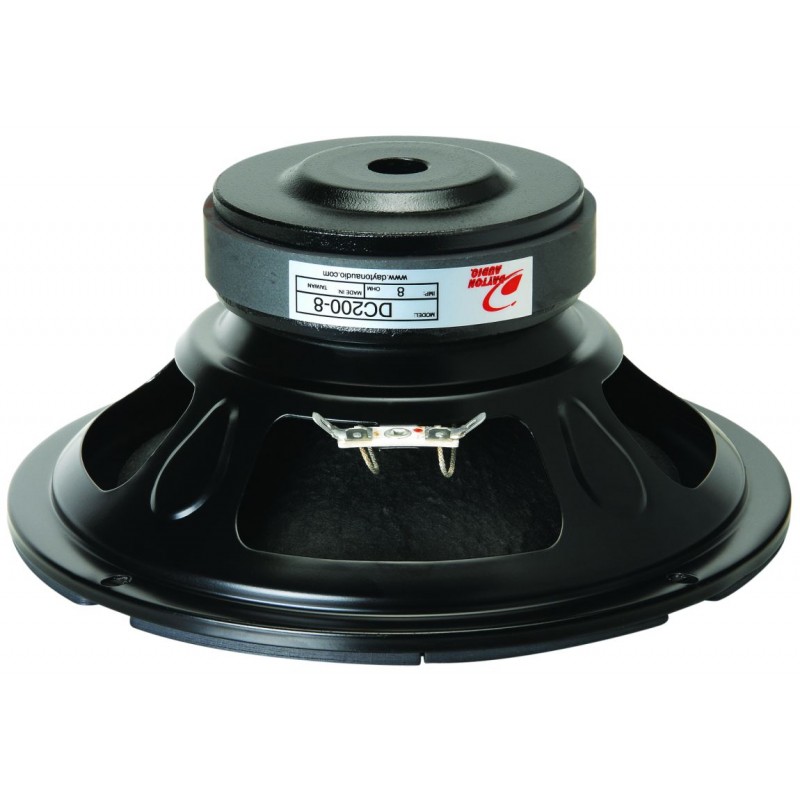

Dayton Audio DC200-8 8" Classic Woofer

offers one of the best price/performance values available anywhere. This DC200-8 8" speaker, and in fact the whole Classic Series, has a non-pressed treated paper cone, ASV voice coil, vented pole piece, rubber surround, coated cloth dust cap, and excellent low frequency performance.

PRODUCT SPECIFICATIONS

 Power Handling (RMS) 60 Watts

 Power Handling (max) 120 Watts Impedance 8 ohms

  Frequency Response 29 to 3,000 Hz

 Sensitivity 88 dB 1W/1m

 Voice Coil Diameter 1.38" Magnet Weight 15 oz.

 THIELE-SMALL PARAMETERS

 Resonant Frequency (Fs) 31 Hz

  DC Resistance (Re) 6.4 ohms

 Voice Coil Inductance (Le) 2.36 mH

 Mechanical Q (Qms) 2.96

 Electromagnetic Q (Qes) 0.47

 Total Q (Qts) 0.40

 Compliance Equivalent Volume (Vas) 1.78 ft.³

 Mechanical Compliance of Suspension (Cms) 0.81 mm/N

 BL Product (BL) 9.35 Tm

 Diaphragm Mass Inc. Airload (Mms) 32.82g

 Maximum Linear Excursion (Xmax) 4.5 mm

 Surface Area of Cone (Sd) 211.2 cm²

 MATERIALS OF CONSTRUCTION

Cone Material Treated Paper

 Surround Material Rubber

 Voice Coil Wire Material Copper

 Voice Coil Former Aluminum Basket /

Frame Material Steel

 Magnet Material Ferrite

 MOUNTING INFORMATION

Overall Outside Diameter 8.07"

 Baffle Cutout Diameter 7.20"

 Depth 3.68" #

Mounting Holes 4

 OPTIMUM CABINET SIZE *

Sealed Volume 0.46 ft.³

 Sealed F3 66 Hz

 Vented Volume 1.36 ft.³

 Vented F3 37 Hz *

 Enclosure volume/F3s based on BassBox "optimum" calculations -
