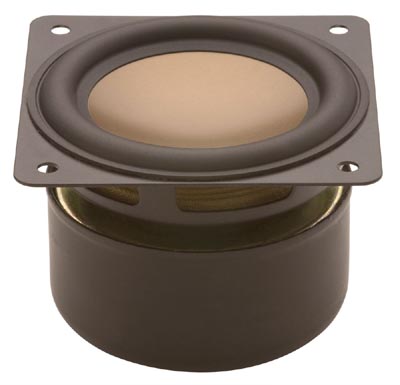

Hi-Vi B3S 3" Full Range, Copper Color Cone

ลำโพง Hi-Vi B3S 3" Full Range, Copper Color Cone

ดอกลำโพง ฟูลเร้นจ์ Hi-Vi B3S 3" Full Range, Copper Color Cone

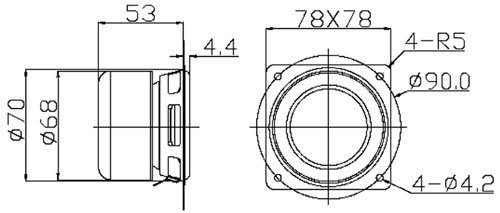

Hi-Vi B3S 3" magnesium/aluminum alloy copper colored inverted dome full range. 78mm square flange. Shielded magnet, rubber surround, frequency range 80Hz to 8kHz. 8 ohm, Fs 80Hz, 80dB, Qts 0.93

• A full frequency design
• Advanced alloy (magnesium/aluminum) cone, coated with special damping material, and anodized
• Optimum recovery CONEX supporting system, having very good stiffness and dynamic stability, improving the sonic features of the speakers
• High power handling, heat-resistant Kapton voice coil former and heat-resistant CCAW voice coil wire
• Finite Element Analysis for shielded magnetic system with long-throw linear excursion design
• Hi-Vi Symmetric Motor Drive (SMD) technology makes the voice coil into a symmetrical driving magnetic field, thus acquiring symmetrical driving force, reducing the mutual modulation of voice coil inductance and back electromotive force, improving the controllability of the speakers, achieving low distortion degree
• Finite Element Analysis for flat & rigid iron frame, prevents the parasitic structural resonances, and improves the linear array of sound source
• Using leading technology of Small/Thiele parameters
• Suitable for midrange, surround speakers a in home theater system, and also suitable for computer multimedia speakers
