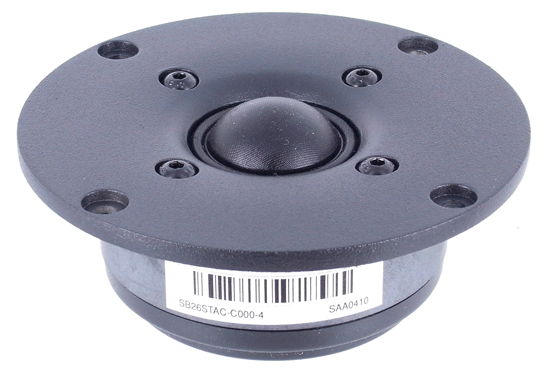

SB Acoustics SB26STAC-C000-4 1" Textile Dome Tweeter

ลำโพง SB Acoustics SB26STAC-C000-4 1" Textile Dome Tweeter

ดอกลำโพง เสียงแหลม SB Acoustics SB26STAC-C000-4 1" Textile Dome Tweeter

The SB26STAC-C000-4 has been recommended as a very good replacement for the Allison Model AL 120 tweeter.  The outside diameter, cut out and terminal positions are all compatible to the original tweeter.  The customer also did measurement comparisons and found them to be a good match in both frequency and impedance.

• 1" Textile Dome
• Frequency Range 2000Hz to 25,000Hz
• 4 ohm Impedance
• 91.5dB Efficient
• 100mm Linear Response Metal Face Plate (3.94")
• Low Reflection Tuned Rear Chamber
• Foam Gasket Attached

Advanced Features

• Cast aluminium faceplate
• Copper cap for reduced voice coil inductance and minimum phase shift
• Non-reflective rear chamber with optimized damping for improved dynamics
• Flow optimized vented pole piece for optimum coupling to rear chamber
• Fine weave soft fabric dome for smooth frequency response
• Saturation controlled motor system for low distortion
• CCAW voice coil for low moving mass
• Long life silver lead wires
• Low resonance frequency
