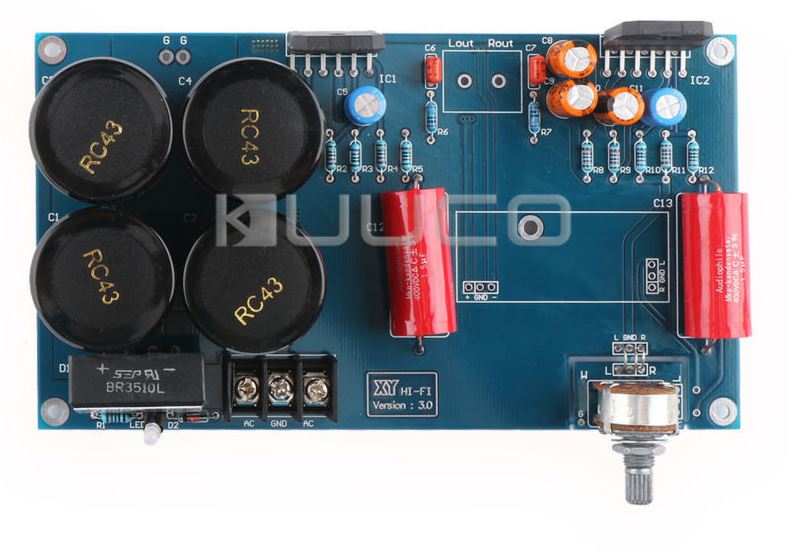

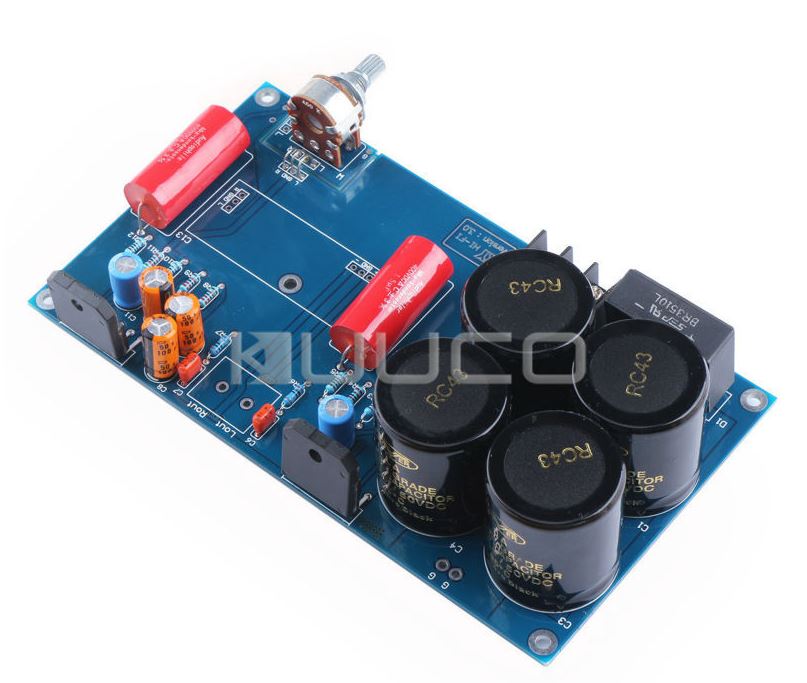

LM3886TF Mono Power Amplifier Module AC 20V~28V 60W Amplifier Rectifier Filter 2in1 Amplifier Finished Board

LM3886TF Mono Power Amplifier Module AC 20V~28V 60W Amplifier Rectifier Filter 2in1 Amplifier Finished Board

บอร์ดแอมป์ DIY LM3886TF Mono Power Amplifier Module AC 20V~28V 60W Amplifier Rectifier Filter 2in1 Amplifier Finished Board

Product Description :

National Semiconductor LM3886 is a single-channel, high-performance audio power amplifier IC produced by this company, the maximum continuous output power up to 68W, from the introduction to the present, has been loved the majority of audio fans.
the board featured power supply and power amplifier integrated designing, can be with NE5532  mini pre-amp . Circuit board using double-sided wave fiber board,  immersion gold processed, the layout is reasonable, designing is nice , signal to noise ratio is high, has sweet voice, the reproduction performance of the board is vivid. Package contains all the components on the board, components included are carefully selected, the filter using four small 6800U/50V NOVER gold capacitor. 35A high current bridge rectifier, amplifier board meet need for a long time full load working. Resistor featured 1% copper pitches all metal film resistors. Other capacitor selection include chemi-con, Philips, Nichicon and other  brands, LM3886TF is National Semiconductor original ones. Blue board using double-sided circuit boards, wiring reasonable and nice.

 Specifications:
    LM3886TF Mono Power Amplifier Module Amp Rectifier Filter 2in1
    Working Voltage:AC 20V~28V
    Output Power: 60W
    Filter capacitors: 4*10000uF/50V Mini NOVER AUDIO capacitors
    Rectifier bridge: 35A large current
    Resistors:1% copper pin film
    Working Temperature: -10°c~65°c
    Size:157mm x 88mm

Package Include:

    1 x  Digital LM3886TF Amplifier Rectifier Filter 2in1
