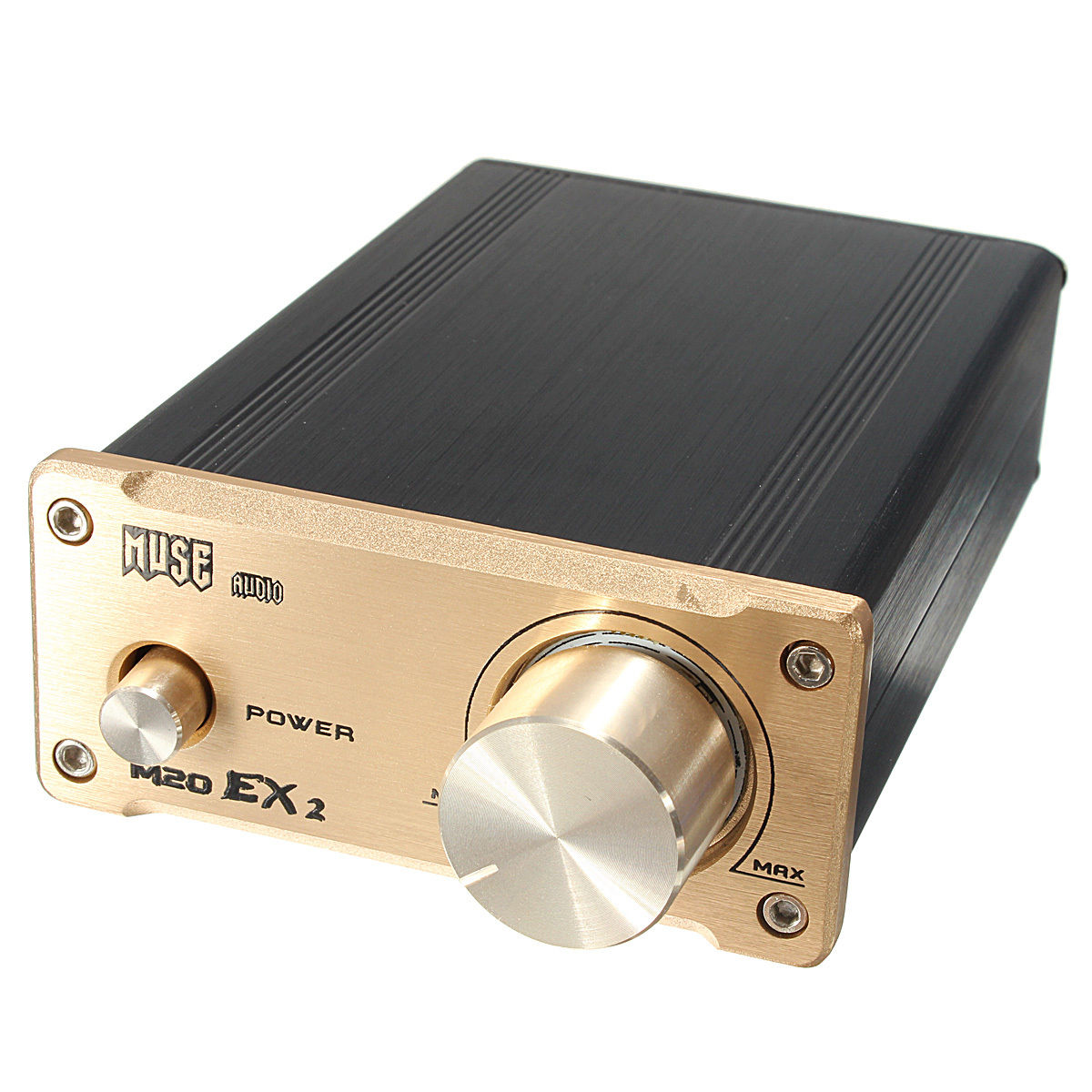

MUSE M20 EX2 Power Digital Amplifier T-Amp 2*20W TA2020 Amplifer (Gold)

MUSE M20 EX2 Power Digital Amplifier T-Amp 2*20W TA2020 Amplifer (Gold)

มินิ แอมป์ MUSE M20 EX2 Power Digital Amplifier T-Amp 2*20W TA2020 Amplifer (Gold)

Description:

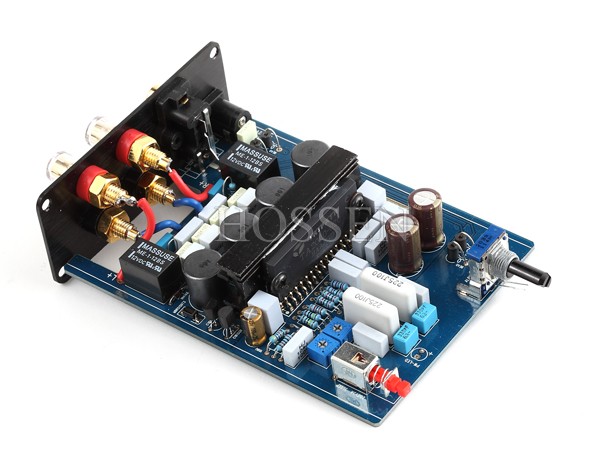

- This is a TA2020 Chip T-digital amplifier with output 2X 20W @4 ohm, 2X 10W @ 8 ohm, suitable for 8" or smaller Bookshelf box,PC audio.
- The sound is warm, good danamic,wide range sound,deep sound field,suitable for listening.It can be connected to audio signals of CD/DVD/MP3/DVB/DM500SEquipments.
- This Amplifier is suitable for Home/study Hifi listening into,Satellite TV receiver external amplifier,PC media audio,Special power amplifier for notebook,diascope,etc.

(This amplifier can not be used as headphone amplifier!)

Feature:
- Panel Color : Silver/Golden/Black optional
- Fit Color : Silver/Black/ Golden is available(Please note it in your message box if you want to choose these two color.)
- Case Material : Aluminum
- Size : 150mm (D) x 90mm (W) x 40mm (H)
- Weight : 450g(This item does not come with power supply, please purchase additional 12V DC power adapter!)

Specific:
- Output Power 2 x 20W @ 4ohm, 2 x 15W @ 8ohm
- Dynamic Range 103dB
- IHF-IM Distortion 0.18% @ 1W, 4ohm
THD Distortion
- 0.03% @ 9W, 4ohm
- 0.1% @ 23W 4ohm
- 0.1% @ 12W 8ohm

- Power Efficiency 81% @ 23W, 4ohm, 90% @ 12W, 8ohm
- Power socket (5.5mm/2.1mm) x 1

Output :
- Speaker OUT (Left) x 1 pair (+ / -)
- Speaker OUT (Right) x 1 pair (+ / -)
- Power Supply input DC 12V~14V 4A
