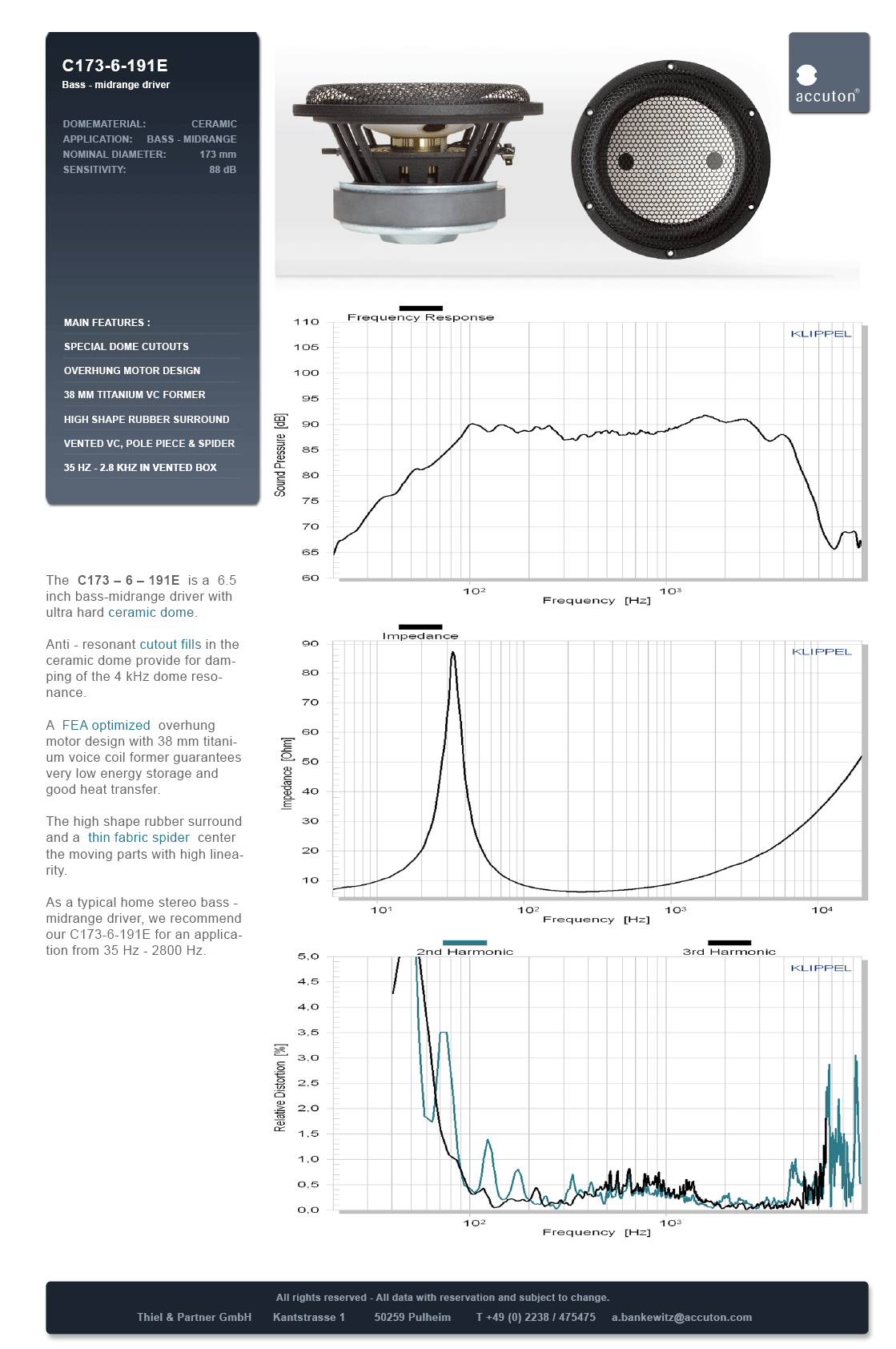

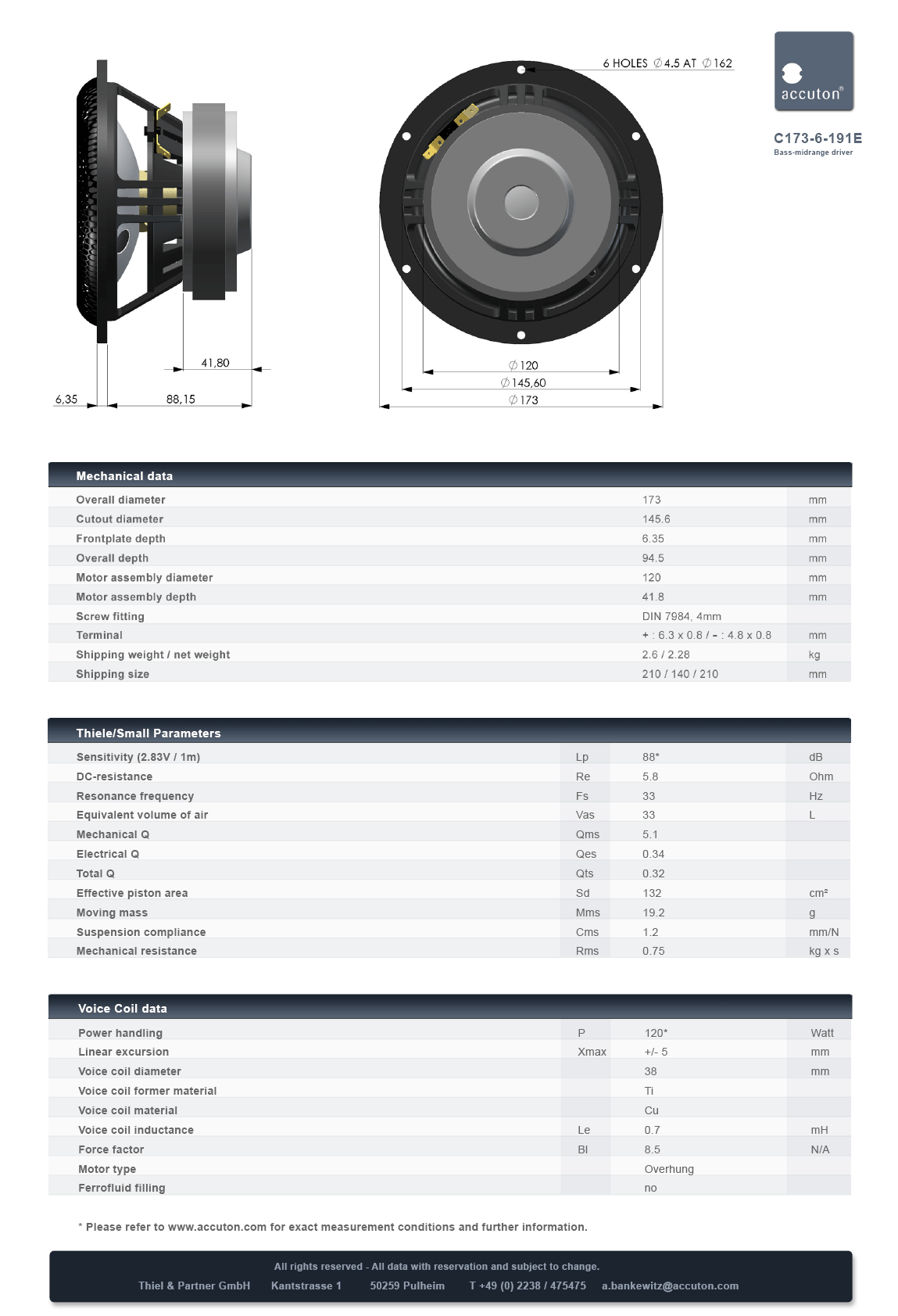

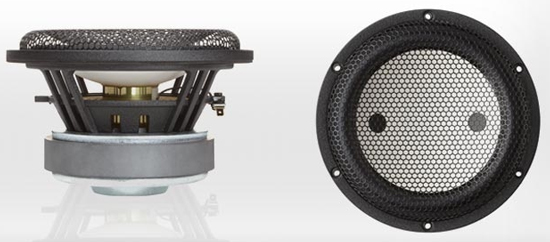

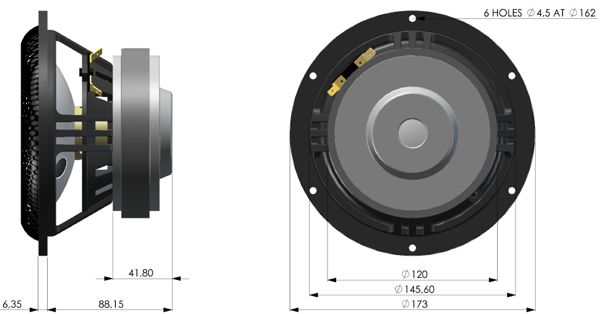

Accuton C173-6-191E 6.5" Ceramic Cut Cone Mid/bass

ลำโพง Accuton C173-6-191E 6.5" Ceramic Cut Cone Mid/bass

ดอกลำโพง Accuton C173-6-191E 6.5" Cut Cone Ceramic Mid/Bass

• 7 Inch bass-midrange for small bookshelf monitors or slim floorstanders
• Medium sized voice coil with 32mm titanium voice coil former for high midrange resolution
• Anti-resonant cutout fills in the ceramic dome provide high damping of the 4 kHz dome resonance
• Overhung motor design
• High shape rubber surround
• Vented voice coil, pole piece and spider
• Improved spider, surround and voice coil former for extended excursion ans smooth roll off

Vented box design parameters:

• Vb: 10L, Port diameter: 50mm, Length: 250mm, Fres: 45Hz, F-3dB: 51Hz, Q: 0.58 (optimal)
• Vb: 14.5L, Port diameter: 50mm, Length: 175mm, Fres: 43.5Hz, F-3dB: 44Hz, Q: 0.50 (extended bass)
• Vb: 8.5L, Port diameter: 50mm, Length: 260mm, Fres: 48Hz, F-3dB: 56Hz, Q: 0.61 (0.7dB Ripple @ 100Hz)

Closed Box design parameters:

• Vb: 6L, -13.5dB @ 40Hz, F-3dB: 80Hz, Q: 0.71 (typical)
• Vb: 19L, -10dB @ 40Hz, F-3dB: 89Hz, Q: 0.50 (extended bass)
